Laptop Storage Speed Comparison (PCie NVMe 5.0, 4.0, 3.0, SATA III)

July 2, 2024July 2, 2024 Miguel Salas 0 Comments

As we went over in our post “Laptop Storage Guide” these are the four most common types of storage devices found on laptops are (From most common to least common):

PCIe NMVe 4.0 SSD x4 lanes (~70% of laptops – regular)
PCIe NMVe 4.0 SSD x2 lanes (~20% of laptops – ultrabooks)
eMMC Flash Storage (%90 of ChromeBooks)
PCIe NVMe SSD 5.0 x4 lanes (~2% of gaming laptops – latest gaming laptops)
SATA III SSD (~Used a secondary drive on laptops – additional storage).

Now these names may be very confusing to you. These are basically “Interface (connections)” used plus a storage drive. Ex: PCIe 4.0 x4 lanes (interface) + NVMe SSD.

For the purposes of this post you can ignore them.

Just be sure to double check those exact names are in the description of whatever laptop you buy (may have to double check for x2 or x4 lanes in the specifications sheet of a model).

If you’d like to know what these names mean and where you can find these storage devices check my post : Laptop Storage Guide.

Below are the hypothetical speeds of those storage devices:

Maximum Possible Storage Speeds

Theoretical values of storage drives. The numbers on top of bars show you how much faster each generation is with respect to the previous one.The x2 and x4 labels stand for number of lanes , more lanes means more speed. Though laptops are currently limited to a maximum of x4 lanes.

Of course the above numbers are not good estimates because those are SSDs operating at optimum conditions. Laptops come in different sizes and limitations.

Bigger laptops are more likely to operate closer to these values since they’ll be more likely to have a better cooling system and accomodate more input power. Smaller laptops will have to operate at lower speeds (to prevent high temperatures) or resort to using weaker storage drives.

More practical values are shown below:

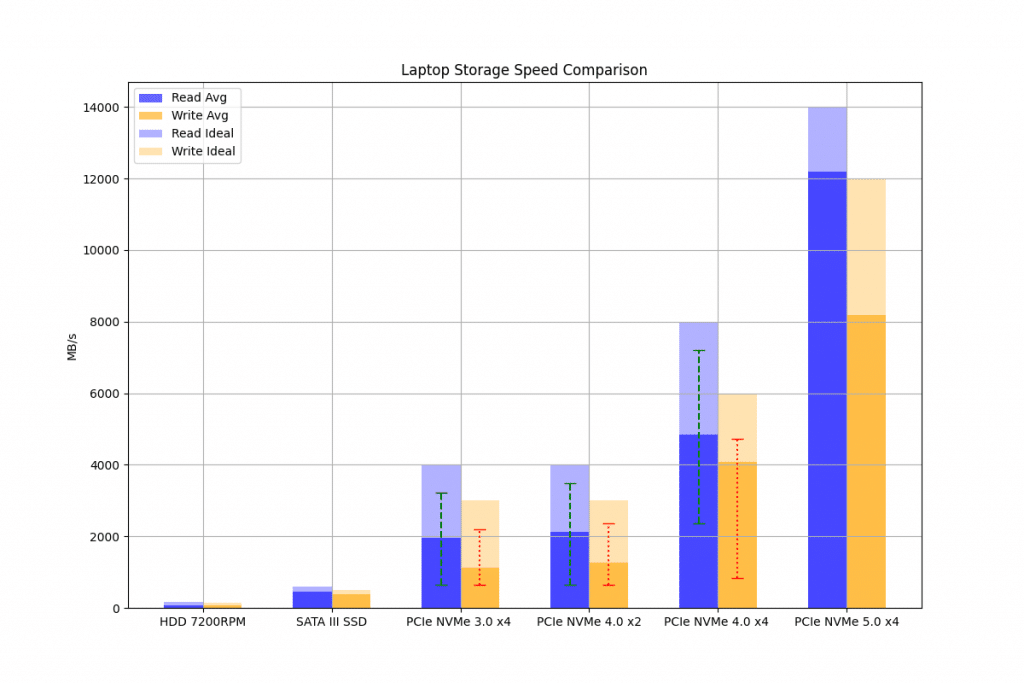

Storage Speed Values Tested on Laptops

In the real world, the average speeds are much lower. The following graph gives you a good overview of the real world read/write speeds of laptop storage drives (data taken from ~25-30 laptops for each storage type).

**Solid Color Bars:** Average speeds **Transparent Bars:** Speed under Ideal conditions. **Dashed Lines:** Min and max speeds.

Note: The graph above is based on the CrystalDiskMark Squential Readings: Q32T1 or Q8T1. I like these benchmarks specifically because they represent how fast/slow you can move large files, such as videos, photos, or games. Ex: copying a large video file from your laptop to an external drive or doing a back up.

Below a sample size of the data used to make the graphs:

Storage	Read (MB/s)	Write (MB/s)	Benchmark	Seq	Source/Laptop
PCIe NVMe 4.0 x4 lanes	6509	5084.7	CrystalDiskmark	Q32T1	Lenovo Legion 9 16IRX9
PCIe NVMe 5.0 x4 lanes	12184.78	8181.66	CrystalDiskmark	Q8T1	LaptopStudy*
PCIe NVMe 4.0 x4 lanes	4955	2704	CrystalDiskMark	Q32T1	ASUS ZenBook Duo
PCIe NVMe 3.0 x4	2588	1858	CrystalDiskMark	Sequential	Lenovo ThinkPad T480
SATA III SSD	550	520	CrystalDiskMark	Q32T1	Glennsqlperformance
7200RPM HDD	82	77	CrystalDiskMark	Sequential	Dell Latitude
PCIe NVMe 4.0 x2	1853	800	CrystalDiskMark	Q32T1	Dell Inspiron 11th

The first three storage types (on the graph) are sort of obselete as main drives (HDD , SATA III SSD & PCie NVMe 3.0) and they’re mostly found on old laptops or as second drives. However, they’re still relevant if you want to shop for slightly older models or if you want to know how much extra speed you’ll get from upgrading your current laptop storage.

The solid colors (blue and orange) represent the average read and write values of all laptops models measured taken from notebookcheck. The dashed lines represent the minimum and maximum values I have found on a laptop.

The low values can be attributed to a slow SSD storage device, slow CPU, lack of RAM, high temperatures, etc. While the max values are usually on high-end gaming laptops which have great cooling systems, enough power, high single-clock speed CPUs, etc.

Ideal values (transparent colors) represent the speeds in the ideal scenario where thermal throttling is not a problem, neither is lack of power and the SSD used (drive) is fast enough. Most laptops (as of 2024) won’t meet these conditions but the latest laptops will get closer and closer to these limits.

Conclusions

Thus if you are a photographer, video editor or your work requires moving lots of large files continously and want to get the highest performance (to save lots of times) you need to check specific benchmarks (for your laptop) to see how fast a given storage type (interface/connection).

Of course, going from one interface (PCie NVMe 3.0 –> PCie NVme 4.0 with x 4 lanes) to another will give you the highest performance boost . However, as can be see from the maximum and minimum values, some laptops despite having a faster interface (Ex: PCIe NVMe 3.0 ) can be just as fast as a slower interface (SATA III SSD).
